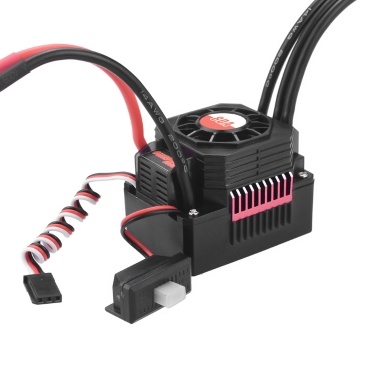

SURPASS HOBBY 80A Brushless ESC Waterproof Electric Speed Controller

This ESC is designed for 1/10 scale RC car with high-frequency drive system and low-resistance field effect tube. Built with the high quality components, it features excellent acceleration and throttle linearity to ensure high operation and provide a stable driving.

Features:
Waterproof and dustproof, perfectly fit for 1/10 RC car.
Strong resistant current capability and excellent heat dissipation.
Easily programmed and compatible with pocket-sized program card.
High current capability of 80A continuous current and 480A burst current ensures a stable driving.
Protection function includes low voltage cut-off protection, over-heat protection, throttle signal loss protection and motor blocked protection.
High-frequency drive system and Low-resistance field effect tube enhances load capacity and improve the utilization rate of power source.
Any problem, please contact our store without hesitation. Honor to serve you.

Specifications:
Name: 80A Brushless ESC
Model: 80A
Color: Black
Continuous Current: 80A
Burst Current: 480A
Battery: 4-12 cell Ni-MH battery/2-4S Li-po battery

Motor Type:
Sensorless Brushless Motor for 2S Li-po or 6S Ni-MH battery:
Off-road/Buggy/On-road Car: 3670-size or smaller motor with the KV<3000
Sensorless Brushless Motor for 3S Li-po or 9S Ni-MH battery:
On-road Car: 3670-size or smaller motor with the KV<3000
Off-road/Buggy/: 3670-size or smaller motor with the KV<2500

BEC Output Voltage: 6.1V/3A
Resistance: 0.0005ohm
Suitable for: 1:10 RC car
Item Size: 51 * 40 * 40mm
Item Weight: 84g

Package Information:
Package size: 11 * 7 * 4cm / 4.2 * 2.7 * 1.5in
Package weight: 130g
Gift box package

Note: There could be some deviation due to manual measurement.

Package List:
1 * Electronic Speed Controller
