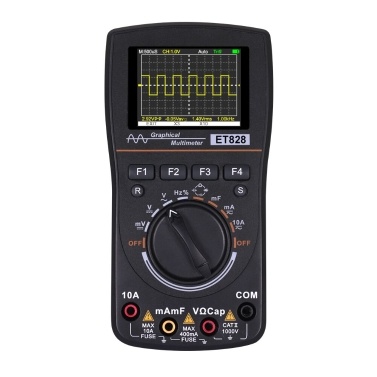

KKmoon 828 2 in 1 High Definition Intelligent Graphical Digital Oscilloscope Multimeter

KKmoon 828 2 in 1 High Definition Intelligent Graphical Digital Oscilloscope Multimeter

( Item#: E12592 )

with 2.4 Inches Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate for DIY and Electronic Test

2025-01-18 03:52:02

US$115.99

115.99

Sale Ends in

00 d 00h 00m 00s

Price on the app only:

Already have CHICUU APP

Scan the product's code to buy directly!

Note: Please update CHICUU App to the latest version.

Don't have CHICUU APP

Download freely and enjoy extra offers!

Ship From

  • CN Warehouse

color:black

  • black
Please select a color
Type Size Guide
Asian Size S M L XL XXL XXXL XXXXL XXXXXL XXXXXXL 7XL 8XL 9XL 10XL 11XL
Tops EUR 32 34 36 38 40 42 44 46 48 50 52 54 56 58
US,CA 2 4 6 8 10 12 14 16 18 20 22 24 26 28
UK,AU 6 8 10 12 14 16 18 20 22 24 26 28 30 32
Bottoms EUR 34 36 38 40 42 44 46 48 50 52 54 56 58 60
US,CA 4 6 8 10 12 14 16 18 20 22 24 26 28 30
UK,AU 8 10 12 14 16 18 20 22 24 26 28 30 32 34
Swimsuit EUR 30-32 32-34 36-36 36-38 38-40 40-42 42-44 44-46 46-48 48-50 50-52 52-54 54-56 56-58
US,CA 2-4 4-6 6-8 8-10 10-12 12-14 14-16 16-18 18-20 20-22 22-24 24-26 26-28 28-30
UK,AU 4-6 6-8 8-10 10-12 12-14 14-16 16-18 18-20 20-22 22-24 24-26 24-28 28-30 30-32

QTY:

Dispatch: Usually will be shipped in business days hours

Shipping: Loading...
No Shipping Method2Please Contact Us For Further Assistance.

Loading...

Ship to

Croatia
Stock in: china

Description

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

Features:
Oscilloscope multimeter 2 in 1, improve your work efficiency.
One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display.
240*320 high definition color screen: the color display is clearer, and the secondary display at the bottom provides more function menus.
Multimeter measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.
Storage: mass storage, 100 data/10 waveforms.
Triple safety: double insurance tube, 500mA/250V, 10A/250V. Input voltage is greater than 24V, beep warning once. Input over range, beep warning.
Same screen display: historical records and real-time data are displayed on the same screen for easy comparison and analysis of data.
Buttons and dial: silicone button, sensitive pressing function dial, accurate gear.
Back bracket: the back bracket is tilted at 60° for easy viewing.

Specifications:
Material: ABS
Color: black
Display: 320*240 LCM
Display area: about 2.4 inches
Backlit: white
Input resistance: 10MΩ
Battery: 3 * AA battery (not included)
Power consumption: about 80mA
Use time: low light about 5 hours
Storage: 100 data/10 waveforms
Use environment: 0~40℃, <75%RH
Storage environment: -10~60℃, <90%RH
Bandwidth: ACV/1MHz ACA/5KHz
Max. real-time sampling rate: 2.5Msps
Multimeter measurement: automatic range + manual range
Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude
Measurement mode: normal, automatic
Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in
Item weight: 195g / 6.9ounce
Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in
Package weight: 370g / 13.1ounce

Multimeter specification:
DC voltage:
Range: 400mV/4V/40V/400V/1000V
Uncertainty: 0.75% rdg+10dgt
AC voltage:
Range: 400mV/4V/40V/400V/750V
Uncertainty: 1.0% rdg+10dgt
DC current:
Range: 40mA/400mA/4A/10A
Uncertainty: 1.2% rdg+10dgt
AC current:
Range: 40mA/400mA/4A/10A
Uncertainty: 1.5% rdg+10dgt
Resistance:
Range: 400.0Ω~40.00MΩ
Uncertainty: 1.0% rdg+5dgt
Capacitance:
Range: 0.1nF~100, 10.00mF
Uncertainty: 2.0% rdg+10dgt
Frequency:
Range: 5Hz~10MHz
Uncertainty: 1.0% rdg+5dgt
Duty cycle:
Range: 0.1%~99.9%
Uncertainty: 1.0% rdg+5dgt
Diode test: voltage is about 5V, test current is about 1.5mA
Continuity test: judgment resistance about:<50Ω beep
Fuse specifications: 500mA/250V, 10A/250V

Packing List:
1 * Graphical Multimeter
1 * Pair of Test Pens
1 * Protective Bag
1 * User Manual
