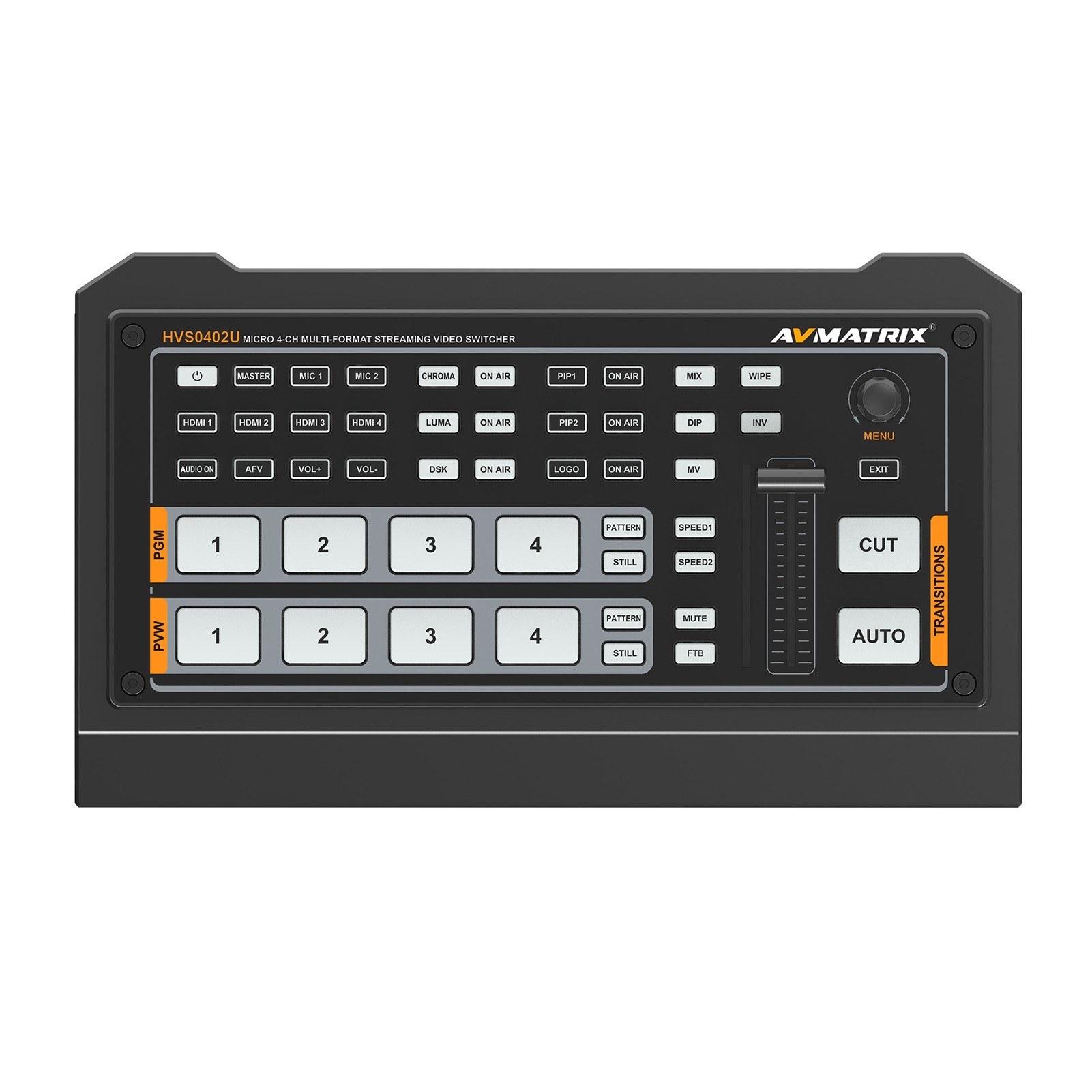

AVMATRIX HVSO402U Portable Multi-format Video Switcher

Features:
Multi-format video switcher with 4 channel auto-detected HDMI inputs, is suitable for various field events, such as game live, live sports, virtual studio, education, concert, and so on.
1 * HDMI PGM output, 1 * HDMI multiview out, 1 * USB type-c output, USB for capturing and streaming on PC, and AUX output configurable and assignable.
Upstream key: Luma key, Chroma key, PIPX2/ POP; Downstream key and LOGO overlay; T-bar/Auto/Cut transitions various effects: WIPE(9x2 patterns)/MIX/DIPe
Clearly visible multiview status page; Audio mixer: HDMI embedded audio and 2-ch MIC/line In: audio delay available; FTB/ MUTE/ STILL GPIO for tally
Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators; LAN port for PC software remote control.

Specifications:
Brand: AVMATRIX
Model: HVSO402U
Power Voltage: 7-24V
Operating Power: 12W(12V 1A)
Working Temperature: -20℃ to 60℃
Storage Temperature: -30℃ to 70℃
Item Size: 24.45 * 14.32 * 4.45cm/ 9.6 * 5.6 * 1.8in
Item Weight: 1030g/ 2.3lbs

Packing List:
1 * Video Switcher
1 * Power Supply(12V 2A)
1 * USB Cable(Type A-C)
1 * Tally Connector(DB-15)
